Construction Staking or Construction Layout

Construction staking or construction layout is the process of marking architectural and civil engineering plans out on the site. It identifies the area proposed for new construction, such as roads or buildings.

It involves placing stakes on the ground to mark the location and elevation of proposed features such as a wet detention basin, utility lines, curb and gutter, buildings, or other improvements, as shown on the approved engineering design drawings or architectural plans. Stakes can be set throughout construction, from rough grading to project completion.

Each stake carries details from the construction plan, and every detail has to be accurate. The professional land surveyor knows where to mark each detail of the site plan. Arcengine understands the work involved and provides construction staking or layout CAD drafting services that follow the feature specifications of your project.

Rough grade staking and site layout staking are two common types of construction staking, selected to suit your project stage and scope.

The first type is rough grade staking, which maps out the proposed changes needed to bring the site to its finished grade. It marks the approximate location of features such as roadways, parking areas, and buildings.

The second type is site layout staking, which is more detailed and precise. It is used for staking the final layout, marking the horizontal and vertical position of the proposed improvements. Once site layout staking and the required approvals are complete, construction can begin.

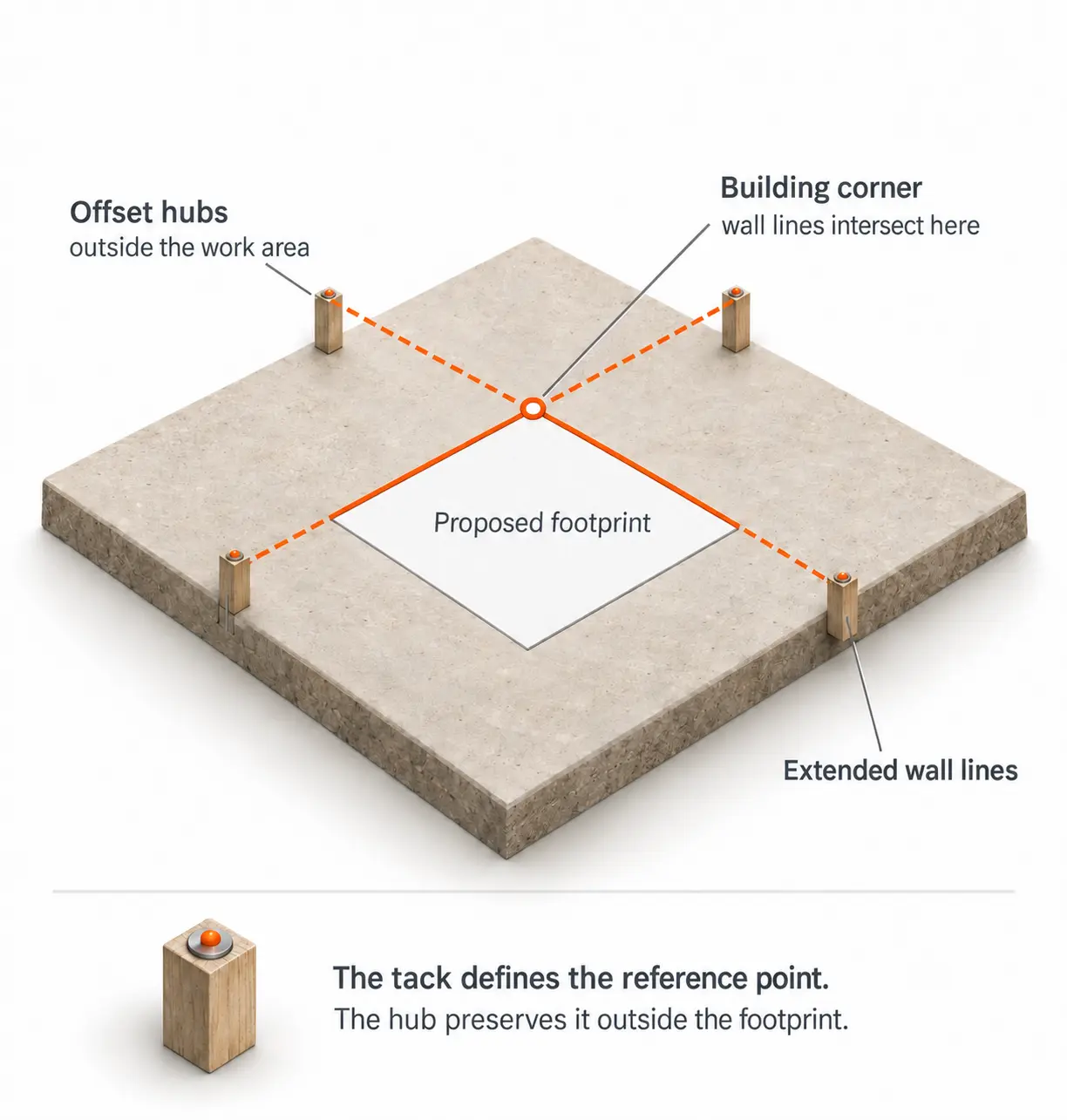

3D offset-stake detail showing four hubs outside a proposed building footprint, with wall lines meeting at one corner.

Why Arcengine

How Arcengine Handles Construction Staking Drafting

Our skilled, experienced team handles every drafting task for your staking services and coordinates the work between the land surveyor, contractor, engineer, architect, and client to keep each job on time, accurate, and cost-effective.

Arcengine provides professional drafting services for construction staking or layout on a wide variety of projects, including Subdivisions, Environmental, Industrial/Warehouse, Site Development, Commercial, Realtor, Personal Residential, Schools, Governmental, Contractor, etc.

We put client satisfaction first and go the extra mile to deliver a high-quality final CAD drawing. Why pay for expensive, low-quality drafting when Arcengine drafting services are cost-effective and high quality?
